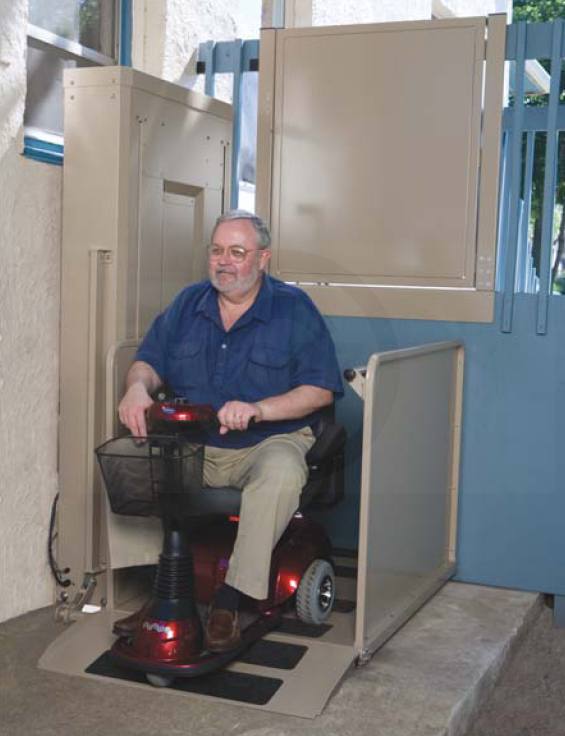

For the consumer who insists upon performance and reliability, the Bruno VPL-3100 offers the perfect solution for your home accessibility needs.
- Welded steel tubular guide construction with formed 16 GA sheet steel guarding
- Solenoid actuated screw breaking at the landings
- 1 HP motor, 1750 rpm, 110-120 Volt 15 Amp 60 Hz dedicated power
- Welded carriage with 2” diameter front and back sealed dual ball bearing wheels and adjustable low friction side stabilizer guide pads
- Acme screw drive, with safety back-up nut
- Weather resistant powder coated paint throughout
- Totally enclosed bottom-formed steel safety pan
- 750 lb. lifting capacity
- Weather protected controls
- Automatic self-lowering folding ramp
- 53” maximum floor to floor height (Model VPL-3153)
- Emergency stop switch on platform – push to stop, pull to reset
- Separate up and down pushbutton switches with key switch control
- 75” maximum floor to floor height (Model VPL-3175)
Optional Equipment
- Top landing gate includes call/ send controls with key and mechanical interlock (released only when platform is at top landing).
- Manual hand crank lowering provided via top cap
- Landing call/send station with key switch
